TE-512L

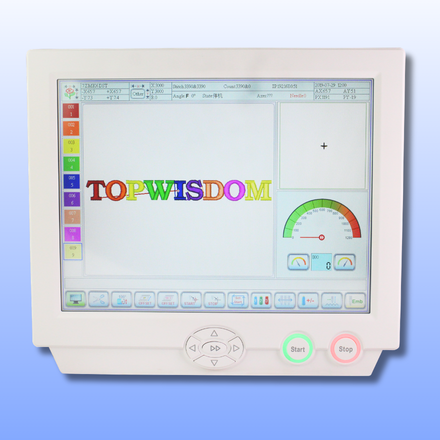

- 12" resistive touch screen multi-head embroidery control system
- ARM+DSP dual CPU, supports pattern input/output, letter design, combining, splitting during embroidery
- Smart thread break detection, accurately detects top thread break and missing bobbin
- Stores 200 patterns (20M stitches total), 2M stitches per design
- Built-in 10 letter libraries for DIY design
- One-key auto frame change, 10+ frame sizes (requires origin sensor, supports center or bottom-right)
- Supports AC, stepper, and closed-loop color change
- Supports multiple modes of independent presser foot
- Composite multifunction board & head board, same control fits different machine configs; single head board can do motor lock / independent hooking / single sequin (select one)
- Stepper thread trimming, precise length adjustment for more stable trimming
Description
Specifications
● 12-inch resistive touch screen
● ARM+DSP dual-CPU control, supports pattern input/output, letter design, combining, splitting during embroidery
● Highly integrated modular design, strong anti-interference, long life, easy installation and maintenance
● Real-time display of spindle angle by degree when stopped, convenient for installation, debugging and function expansion
● CAN bus communication, high stability, simplified wiring, reduces instability caused by connectors
● Composite multifunction board and head board, same control system adapts to different machine configurations; single head board supports motor lock / independent hooking / single sequin (select one of three)
● Stepper thread trimming, precise length adjustment, more stable trimming
● Supports AC, stepper, closed-loop color change methods
● Supports multiple modes of independent presser foot function
● Smart thread break detection, accurately detects top thread break and missing bobbin thread
● Stores 200 patterns (20 million stitches total), 2 million stitches per design
● Built-in 10 letter libraries, convenient for DIY design
● Accurate outline embroidery and frame positioning for easy alignment
● One-key automatic frame change, built-in 10+ frame sizes (requires origin sensor, supports center or bottom-right position)
● Supports multiple languages: Chinese, English, Spanish, Turkish, Dutch, French, German, Russian, Portuguese, Vietnamese, Thai, Arabic, etc. Customizable
● Supports boot LOGO upgrade, convenient for OEM
● Pattern preview during USB input
● Dynamic stitch compensation (±0.3 adjustment) for individual designs, no deformation after compensation
● Supports power-off resume embroidery with one key
● Hooking supports unified or independent methods, optional stepper or AC motor
● Practical top thread clamping, effectively controls remaining thread length after trimming, significantly improves embroidery quality
● Supports wired and WiFi networking, with PC software for file transfer and monitoring of multiple machines
● Supports expansion: single sequin, multi-sequin, simple chenille, simple terry, single/double color beads, laser cutting, hot cutting, etc.
● Supports red light positioning
● Supports grating stop function
● Simple encryption, supports dealer time-limited (daily) restrictions
● Motor drive supports open-loop stepper, closed-loop stepper, and full servo modes, wide adaptability; main control board is common, facilitating after-sales service
